Streaming from Multiple Cameras

Capturing the User and the World 📱 👩🏾 ⛰️

VideoKit supports multi-camera streaming, where multiple independent cameras stream simultaneously. This enables you to build highly interactive media experiences in your application.

Using the Camera Manager Component

VideoKit provides the VideoKitCameraManager component to simplify working with camera devices in Unity scenes.

Adding the Component

The first step is to add a VideoKitCameraManager component in your scene.

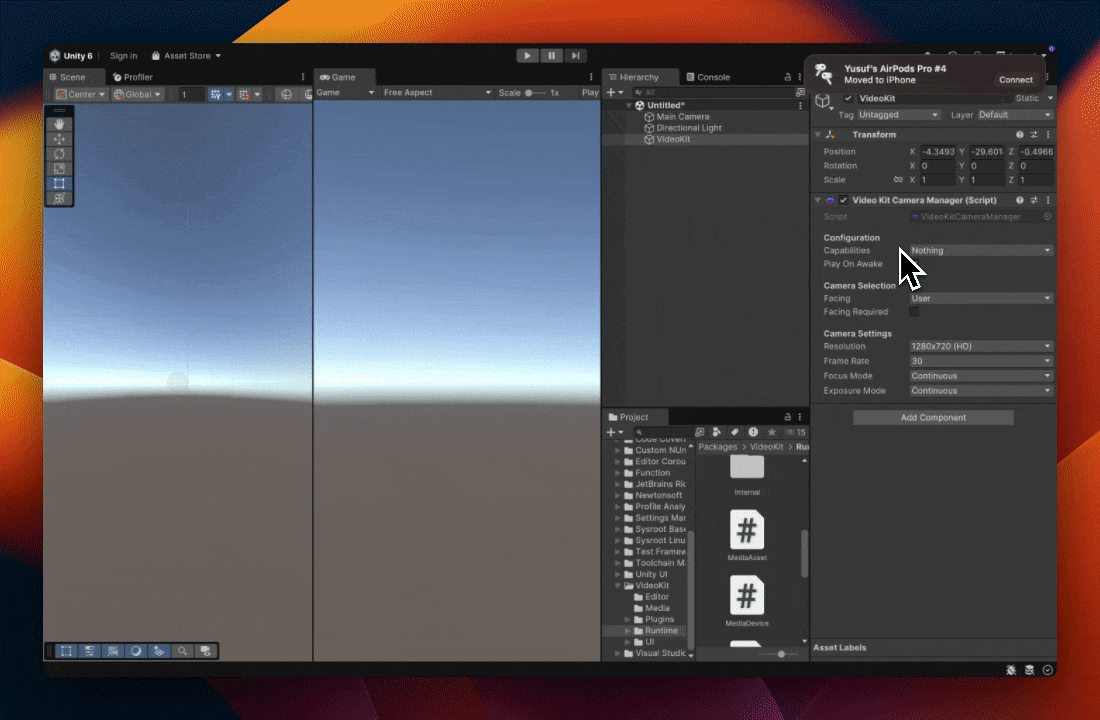

Next, select both User and World in the Facing property:

[GIF HERE]

Finally, change the Resolution and Frame Rate to Default.

Displaying the Preview

To display the camera preview, first create a UI RawImage and add a VideoKitCameraView component:

Finally, choose a camera to display:

[GIF HERE]

Now build and run on your Android or iOS device!

Using the VideoKit API

Multi-camera streaming is exposed with the MultiCameraDevice class.

Discovering Camera Devices

Because camera devices access highly sensitive user data, the very first step is to request camera permissions from the user. We provide the MultiCameraDevice.CheckPermissions method for this:

// Request camera permisisons from the user
PermissionStatus status = await MultiCameraDevice.CheckPermissions(request: true);
// Check that the user granted permissions
if (status != PermissionStatus.Granted)
    return;

Once camera permisisons have been granted, we can now discover available multi-camera devices using the MultiCameraDevice.Discover method:

using System.Linq;

// Discover available multi-camera devices
MultiCameraDevice[] multiCameraDevices = await MultiCameraDevice.Discover();
// Use the first multi-camera device
MultiCameraDevice multiCameraDevice = multiCameraDevices.FirstOrDefault();

Streaming Pixel Buffers

To begin streaming pixel buffers from the multi-camera device, use the MultiCameraDevice.StartRunning method:

// Start streaming pixel buffers from the multi-camera
multiCameraDevice.StartRunning(OnPixelBuffer);

You must provide a callback that will be invoked with pixel buffers as they become available:

void OnPixelBuffer (CameraDevice cameraDevice, PixelBuffer pixelBuffer) {
    // ...
}

The provided callback is invoked with the latest PixelBuffer along with the CameraDevice that generated it.

Displaying Pixel Buffers

The PixelBuffer instances provided to the preview callback contain raw pixel data. This data is usually optimized for the camera system, which means that it is often in a planar format (e.g. YUV) and has no geometric transformations applied (i.e. orientation, mirroring).

Before we can display the pixel data, we must first convert it to the RGBA8888 pixel format and apply any relevant geometric transformations. First, allocate a NativeArray to hold the transformed pixel data and a Texture2D to actually display the pixel data:

private NativeArray<byte> rgbaData;
private Texture2D texture;

void StartCamera () {
    // Get the current preview resolution from the camera
    var (width, height) = camera.previewResolution;
    // Create preview data
    rgbaData = new NativeArray<byte>(width * height * 4, Allocator.Persistent);
    // Create the preview texture
    texture = new Texture2D(width, height, TextureFormat.RGBA32, false);
    // Start streaming pixel buffers from the camera
    multiCameraDevice.StartRunning(OnPixelBuffer);
}

When we receive a new pixel buffer in OnPixelBuffer, we can use the PixelBuffer.CopyTo method to copy the pixel data to our rgbaData while applying relevant pixel format and geometric transformations:

void OnPixelBuffer (CameraDevice cameraDevice, PixelBuffer cameraBuffer) {
    // Ensure that we only handle the first camera device in the multi-camera device
    if (cameraDevice != multiCameraDevice.cameras[0])
        return;
    lock (texture) {
        // Create a destination `PixelBuffer` backed by our preview data
        using var previewBuffer = new PixelBuffer(
            cameraBuffer.width,
            cameraBuffer.height,
            PixelBuffer.Format.RGBA8888,
            rgbaData
        );
        // Copy the pixel data from the camera buffer to our preview buffer
        cameraBuffer.CopyTo(previewBuffer, rotation: PixelBuffer.Rotation._180);
    }
}

Finally, use your script's Update method to upload the preview data into a Texture2D for viewing:

void Update () {
    // Update the preview texture with the latest preview data
    lock (texture)
        texture.GetRawTextureData<byte>().CopyFrom(rgbaData);
    // Upload the texture data to the GPU for display
    texture.Apply();
}
