Streaming from Cameras

Adding the User to the Mix 👩🏾

VideoKit makes it very easy to discover available camera devices and stream the camera preview. Below, we will explore doing so with and without code.

Using the Camera Manager Component

VideoKit provides the VideoKitCameraManager component to simplify working with camera devices in Unity scenes.

Adding the Component

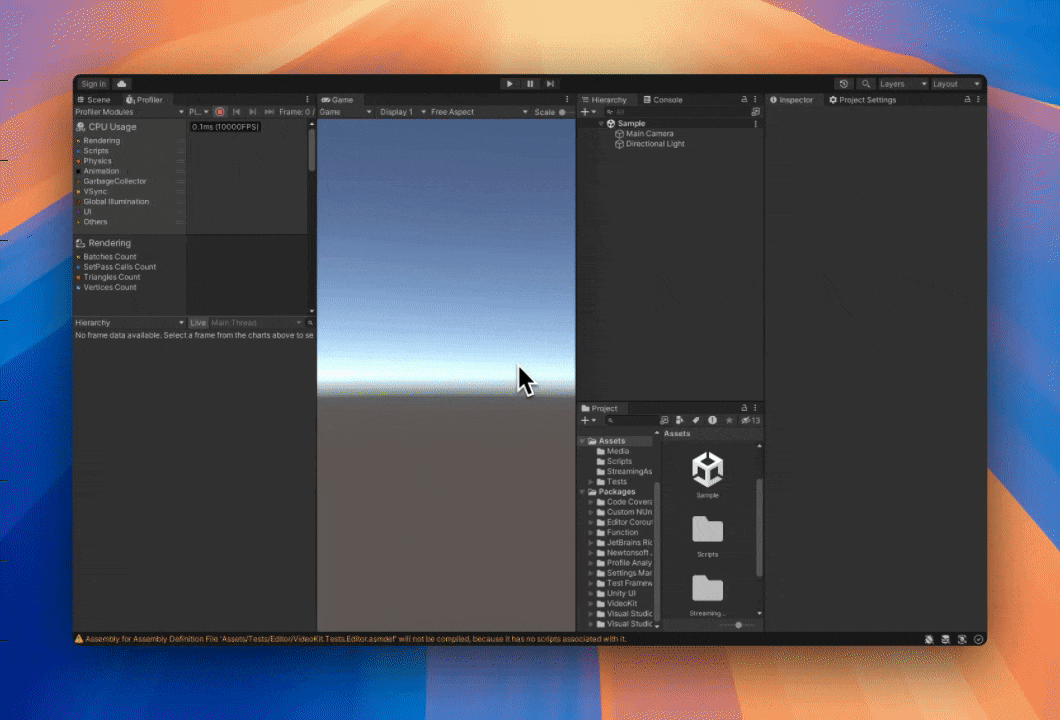

The first step is to add a VideoKitCameraManager component in your scene.

Displaying the Preview

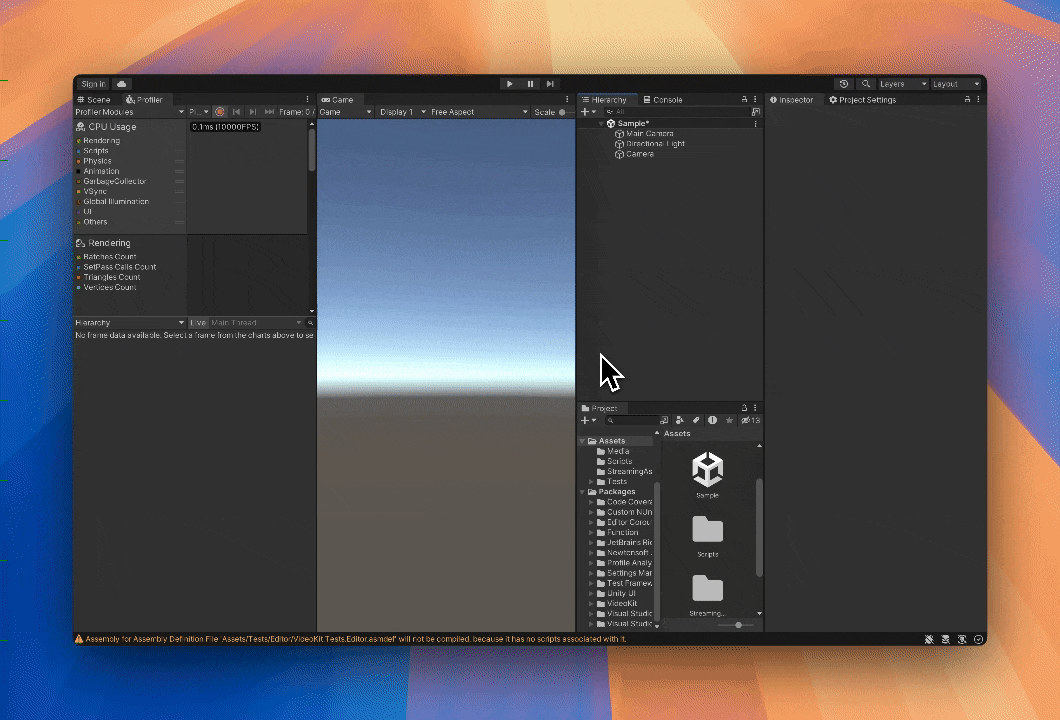

To display the camera preview, first create a UI RawImage and add a VideoKitCameraView component:

Now press play, and that's it!

Removing the User Background

VideoKit supports removing the user's background from the camera preview. First, enable the Human Texture capability on the VideoKitCameraManager component:

Next, change the View Mode on the VideoKitCameraView component to Human Texture:

Using the VideoKit API

Camera streaming is exposed with the CameraDevice class.

Discovering Camera devices

Because camera devices access highly sensitive user data, the very first step is to request camera permissions from the user. We provide the CameraDevice.CheckPermissions method for this:

// Request camera permisisons from the user
PermissionStatus status = await CameraDevice.CheckPermissions(request: true);
// Check that the user granted permissions
if (status != PermissionStatus.Granted)
    return;

Once camera permisisons have been granted, we can now discover available cameras using the CameraDevice.Discover method:

using System.Linq;

// Discover available camera devices
CameraDevice[] cameras = await CameraDevice.Discover();
// Use the first front-facing camera
CameraDevice camera = cameras.FirstOrDefault(cam => cam.frontFacing);

Configuring the Camera Stream

Camera devices expose an extensive API for configuring the preview resolution, photo resolution, focus mode, exposure mode, and much more. At a minimum, we recommend configuring the preview resolution:

// Set the camera preview resolution
camera.previewResolution = (1280, 720);

Streaming Pixel Buffers

To begin streaming pixel buffers from the camera, use the CameraDevice.StartRunning method:

// Start streaming pixel buffers from the camera
camera.StartRunning(OnPixelBuffer);

You must provide a callback that will be invoked with pixel buffers as they become available:

void OnPixelBuffer (PixelBuffer cameraBuffer) {
    // ...
}

Displaying Pixel Buffers

The PixelBuffer instances provided to the camera callback contain raw pixel data. This data is usually optimized for the camera system, which means that it is often in a planar format (e.g. YUV) and has no geometric transformations applied (i.e. orientation, mirroring).

Before we can display the pixel data, we must first convert it to the RGBA8888 pixel format and apply any relevant geometric transformations. First, allocate a NativeArray to hold the transformed pixel data and a Texture2D to actually display the pixel data:

private NativeArray<byte> rgbaData;
private Texture2D texture;

void StartCamera () {
    // Get the current preview resolution from the camera
    var (width, height) = camera.previewResolution;
    // Create preview data
    rgbaData = new NativeArray<byte>(width * height * 4, Allocator.Persistent);
    // Create the preview texture
    texture = new Texture2D(width, height, TextureFormat.RGBA32, false);
    // Start streaming pixel buffers from the camera
    camera.StartRunning(OnPixelBuffer);
}

When we receive a new pixel buffer in OnPixelBuffer, we can use the PixelBuffer.CopyTo method to copy the pixel data to our rgbaData while applying relevant pixel format and geometric transformations:

void OnPixelBuffer (PixelBuffer cameraBuffer) {
    lock (texture) {
        // Create a destination `PixelBuffer` backed by our preview data
        using var previewBuffer = new PixelBuffer(
            cameraBuffer.width,
            cameraBuffer.height,
            PixelBuffer.Format.RGBA8888,
            rgbaData
        );
        // Copy the pixel data from the camera buffer to our preview buffer
        cameraBuffer.CopyTo(previewBuffer, rotation: PixelBuffer.Rotation._180);
    }
}

Finally, use your script's Update method to upload the preview data into a Texture2D for viewing:

void Update () {
    // Update the preview texture with the latest preview data
    lock (texture)
        texture.GetRawTextureData<byte>().CopyFrom(rgbaData);
    // Upload the texture data to the GPU for display
    texture.Apply();
}

Capturing High Resolution Photos

INCOMPLETE
